Automobile Relay

Name: Automobile Relay
Brand: KARAN ENTERPRISES
Price: 140 INR
Availability: InStock

140 INR/Piece

Get a Price/Quote

Product Details:

Contact Material Silver Alloy
Contact Resistance 100 m
Ambient Temperature -40C to +85C
Working Temperature -25C to +80C
Protect Feature Dust Cover
Mechanical Life 10,000,000 operations
Coil Power 0.9W
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automobile Relay Price And Quantity

Price 140 INR/Piece
Minimum Order Quantity 100 Piece

Compliance RoHS, CE Certified
Mounting Type PCB/Socket Mount
Shock Resistance 100 m/s, 11 ms duration
Storage Temperature -40C to +125C
Operate and Release Time <10ms / <5ms
Insulation Class Class F (155C)
Capacitance 1000F typical
Package Type Box/Corrugated Carton
Min. Order Quantity 100 Pieces
Vibration Resistance 10~55 Hz, double amplitude 1.5 mm

Automobile Relay Product Specifications

Contact Load 30A
Usage Automobile Electrical Systems
Working Temperature -25C to +80C
Weight 45 g
Supply Terminal Copper Alloy
Terminal Type Blade Type
Operate Time 10 ms
Ambient Temperature -40C to +85C
Insulation Resistance 100 M at 500V DC
Contact Resistance 100 m
Contact Material Silver Alloy
Contact Form SPDT
Dimension (L*W*H) 29 x 13 x 25 mm
Size Standard
Theory Electromagnetic Relay
Dielectiric Strength 500V AC/min
Color Black
Power Consumption 0.9W
Coil Voltage 12V DC
Product Type Automobile Relay
Coil Power 0.9W
Mechanical Life 10,000,000 operations
Rated Voltage 12V DC
Protect Feature Dust Cover

Compliance RoHS, CE Certified
Mounting Type PCB/Socket Mount
Shock Resistance 100 m/s, 11 ms duration
Storage Temperature -40C to +125C
Operate and Release Time <10ms / <5ms
Insulation Class Class F (155C)
Capacitance 1000F typical
Package Type Box/Corrugated Carton
Min. Order Quantity 100 Pieces
Vibration Resistance 10~55 Hz, double amplitude 1.5 mm

Product Description

We introduce our organization as the noteworthy manufacturer and supplier of automotive components including Automobile Relay. The provided automotive relay finds numerous usages in the cars for the installation of controlling components, alarms, horns, headlights and many other components. Offered relay is manufactured by our adept professionals using quality-tested components and advanced techniques in line with set industry standards. Further, we offer this Automobile Relay to the clients in several technical specifications at market leading prices.

Features:

No sparking contacts
Easy to install
High sensitivity
Resistant to under and over voltages

Frequently Asked Questions

1. What function does an automotive relay serve?

Ans - Like another switch, a computer, or a control module, relays are switches that are powered by electricity. An automotive relays function is to automatically switch electrical circuits on and off at predetermined intervals.

2. What are the two kinds of relays used in automobiles?

Ans - Changeover relays are also referred to as Single Pole Double Throw (SPDT) and make-and-break relays as Single Pole Single Throw (SPST) (SPDT). The nomenclature used here is typical switch terminology. Other contact arrangements are covered in the sections that follow, although make-and-break and changeover relays are the most typical.

3. Automotive relays come in what sizes?

Ans - The PCB board has PCB relays soldered on it. The sizes of plug-in relays typically range from 2.8mm to 4.8mm to 6.3mm and 9.5mm; the terminal layout is broken down into 280 categories and ISO categories (micro-ISO, mini-ISO, and power mini ISO) (ultra 280, micro 280, mini 280).

4. How much current can a relay manage?

Ans - A relay is one of the most prevalent electro-mechanical switches in a car, and its primary function is to allow a signal with low power (usually 40 -100 amps) to control a circuit with higher power.

Reliable Performance Under Demanding Conditions

Designed to withstand tough automotive environments, this relay excels with remarkable vibration and shock resistance. It ensures uninterrupted operation within wide temperature ranges, making it suitable for various vehicles and critical applications. The robust dust-protective cover enhances longevity by preventing contamination.

Installation Versatility and Ease

With both PCB and socket mounting options and blade-type copper alloy terminals, installation is flexible and straightforward. Standard dimensions and box/corrugated carton packaging facilitate handling in high-volume assembly lines or workshops. This relay aligns with manufacturing and replacement workflows smoothly.

Certified Safety and High Lifespan

Compliance with RoHS and CE directives guarantees adherence to global safety and environmental regulations. The relays 10,000,000 mechanical operation rating and Class F insulation provide peace of mind for extended use in automotive electrical circuits, reliably managing up to 30A.

FAQs of Automobile Relay:

Q: How is this automobile relay typically installed?

A: This relay supports both PCB and socket mounting, offering flexibility for various automotive electrical system designs. Its blade-type copper alloy terminals are compatible with standard sockets or circuit boards, making installation efficient in manufacturing or repair environments.

Q: What benefits does the 100 m/s shock resistance provide?

A: Withstand shocks up to 100 m/s for 11 ms protects the relays integrity under harsh driving conditions, reducing the risk of electrical failure due to road impacts or collisions, which is critical for automotive applications.

Q: When should this relay be used in automotive systems?

A: It is ideal for applications that require quick switching (operate time <10ms), high current handling (up to 30A), and stable performance under temperature and mechanical stress. Common uses include controlling motors, lighting, and other high-demand components in automobiles.

Q: Where can the relay be sourced in bulk?

A: This relay is available in India directly from the manufacturer, distributor, exporter, supplier, and trader network. Minimum order quantity is 100 pieces, shipped in box or corrugated carton packaging for secure delivery.

Q: What is the process for selecting the correct relay for a specific application?

A: Begin by confirming voltage and current requirements (such as 12V DC and up to 30A contact load), ensure size compatibility (29 x 13 x 25 mm dimension), verify compliance needs (RoHS/CE), and check environmental requirements for shock, vibration, and temperature tolerance. Consult with the supplier for large-volume or custom needs.

Q: How does RoHS and CE certification benefit users?

A: RoHS and CE certifications ensure that the relay adheres to international safety, quality, and environmental standards. This minimizes risk, facilitates market access in regulated regions, and contributes to eco-friendly, safe vehicle construction.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Automobile Relay' category

Micro relay 4 pin 12V Price : 100 INR/Piece Minimum Order Quantity : 100 Product Type : Electromagnetic Relay Theory : Other , Electromagnetic Color : Black Usage : Automotive and electronic circuits Contact Load : Other, 10A @ 12VDC Weight : Approx 20g Power Consumption : Approx 0.36W Protect Feature : Other, Dust Cover Rated Voltage : 12V DC Coil Power : 0.36 W Coil Voltage : 12V DC Size : Other, Micro Dimension (L*W*H) : Approximately 28mm x 20mm x 25mm Contact Form : SPST (Single Pole Single Throw) Dielectiric Strength : 500VAC, 1 min Mechanical Life : 1,000,000 operations Working Temperature : Up to 85C Supply Terminal : Standard spade terminals Terminal Type : Other, 4pin Contact Material : Silver alloy Operate Time : < 10 ms Ambient Temperature : 40C to +85C Insulation Resistance : 100 M (at 500VDC) Contact Resistance : < 100 m

Send Inquiry

Dual head lamp relay Price : 100 INR/Piece Minimum Order Quantity : 50 Product Type : Dual Head Lamp Relay Theory : Other , Electromagnetic Relay Color : Black Usage : Automotive Headlamp Switching Contact Load : Other, 30A/12V DC Weight : Approx. 45g Power Consumption : 1.6W Protect Feature : Other, Weatherproof Casing Rated Voltage : 12V DC Coil Power : 1.6W Coil Voltage : 12V DC Size : Other, Compact Dimension (L*W*H) : 29 x 27 x 30 mm Contact Form : SPDT Dielectiric Strength : 500VAC, 1 min Mechanical Life : 1,000,000 Operations Working Temperature : 40C to +125C Supply Terminal : 3Pin/4Pin Terminal Type : Other, Pin Type Contact Material : Silver Alloy Operate Time : <10ms Ambient Temperature : 40C to +85C Insulation Resistance : 100M (500VDC) Contact Resistance : 100m

Send Inquiry

ACC Relay 12 Volt Price Range : 35.00 - 80.00 INR Minimum Order Quantity : 50 Product Type : Relay Theory : Volatage Relay Color : Grey Usage : Fan Control Switching Contact Load : High Power Rated Voltage : 12 Volt (V) Coil Power : 1 A Form

Send Inquiry

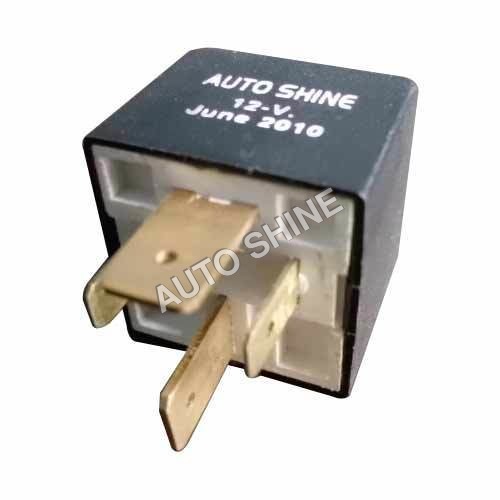

Relay Universal 4 Pin (HD) 12 Volt Price Range : 35.00 - 80.00 INR Minimum Order Quantity : 50 Product Type : Relay Theory : Volatage Relay Color : Black Usage : Automobile Contact Load : High Power Weight : 50100 Grams (g) Protect Feature : Sealed
